Velvac 6" Tailgate Air Cylinder #100603 (Haldex R3PT75)

R3PT75 100603 (10 LBS)

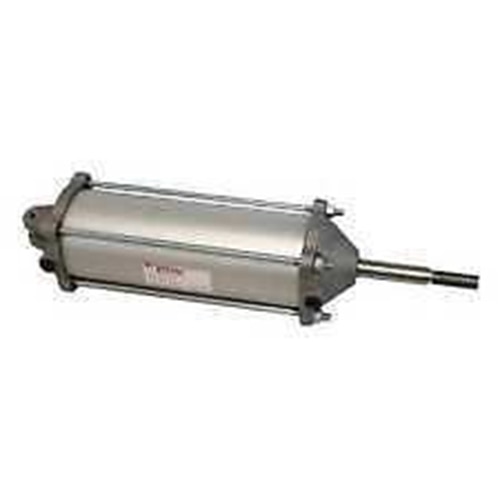

Velvac 6" Tailgate Air Cylinder  #100603 (Haldex R3PT75)

Product Description

Velvac 6" Tailgate Air Cylinder (Haldex Style R3PT75) #100603

The tailgate air cylinder is designed to allow remote cab opening and closing of the tailgate locking mechanism on a dump body.
Replaces: Haldex R3PT75


  • 303 service stainless steel cylinder shafts provide excellent corrosion resistance and extended cycle life, 5/8"-18 thread .
  • Lightweight, corrosion resistant aluminum cylinder tube with die cast aluminum end caps.
  • Rear clevis cast as integral part of the rear cover for improved durability and mounting integrity.
  • Double acting, Emralon-coated piston cup assures smooth long lasting operation even in cold weather conditions (to - 40°)
  • Front end cap assembly includes pressure seal, dirt seal and oil impregnated bronze bushing
  • All cylinders are factory pressure and leak tested prior to shipping

Air Cylinder Specifications

  • Diameter: 6"
  • Stroke: 3"
  • Retracted Length: 16.18"
  • Extended Length: 19.18"
  • Thrust @ 100 psi: 400 lbs.
  • Draw @ 100 psi: 2400 lbs.
  • Cylinder Type: Spring Return
  • VelVac part # 100603
